Quick diagnosis
Over-extrusion pushes out more plastic than the model calls for, leaving blobs, bulging vertical walls and dimensions that run oversized through the whole print. If the extra material is limited to the first few layers at the base of the part, that is elephant’s foot, a separate issue caused by weight and heat rather than excess flow.
1. Calibrate e-steps before anything else
E-steps tell the firmware how many motor steps move the filament exactly one millimeter, and this value applies to every material the printer runs. Mark the filament above the extruder, command a fixed length of extrusion, then measure how far the mark actually moved. If the printer consistently pushes more filament than commanded, the e-steps value is set too high and needs correcting in firmware before any slicer-side flow adjustment will hold steady across different prints.
2. Check the filament diameter setting
The slicer calculates how much to extrude based on the diameter entered in the filament profile, so a value that does not match the actual spool throws off every print made with it. Measure the filament with calipers at a few points along its length and enter the real average rather than trusting the number printed on the spool label. A profile set for a narrower diameter than the actual filament will systematically over-extrude, even when e-steps and flow rate both look correct on paper.
3. Tune flow rate per material

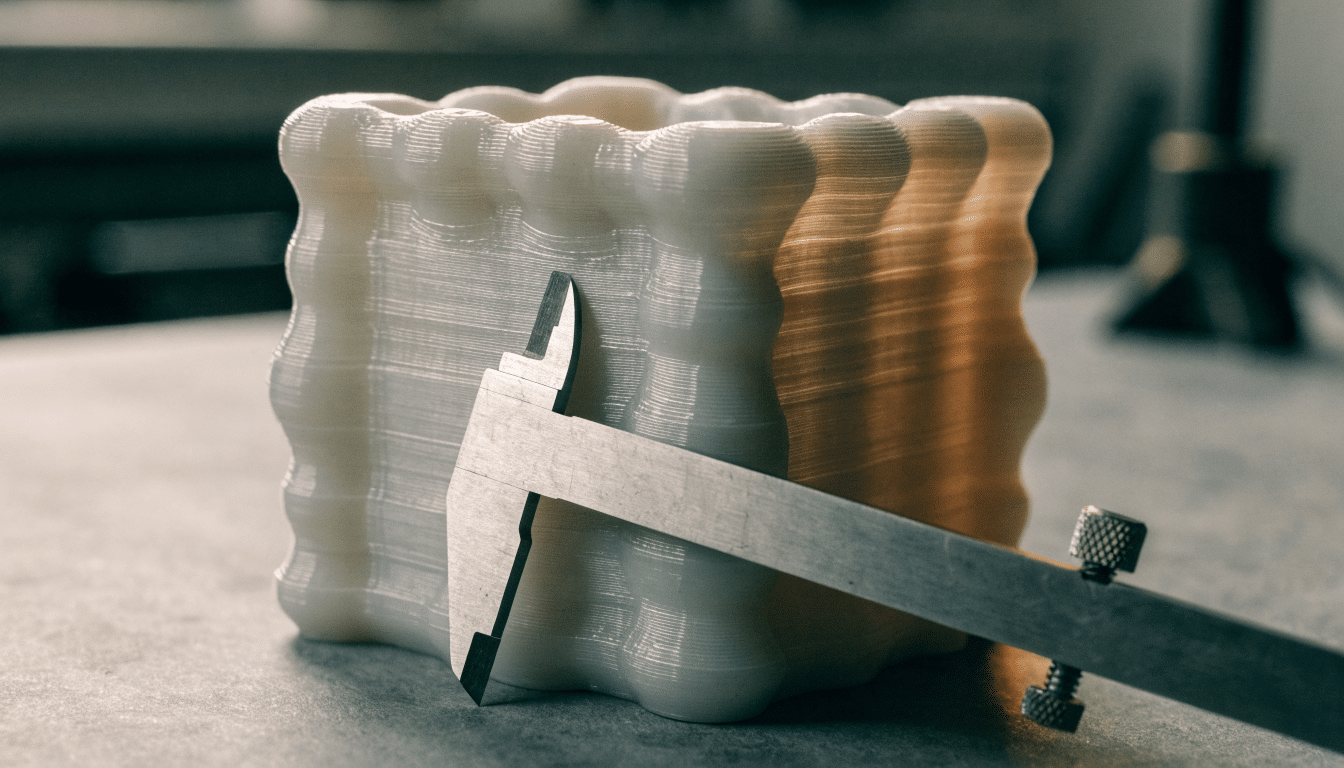

Once e-steps and diameter are confirmed, fine-tune the flow rate or extrusion multiplier for the specific material in use. Print a single-wall calibration cube, measure the wall thickness with calipers, and compare it to the value the slicer expected. Turn the flow percentage down if the wall measures thicker than commanded, then reprint and remeasure. Keep this adjustment specific to the material, and even the spool, since different filaments and colors can extrude slightly differently at the same settings.
4. Confirm the nozzle diameter matches the slicer profile
A slicer profile set for a smaller nozzle than what is actually installed commands thinner lines than the nozzle can physically produce, and the extra plastic has nowhere to go but out and up into bulges. Check the nozzle that is mounted against the diameter selected in the printer and filament profiles, and confirm the two match after any nozzle swap. This step is easy to overlook after switching to a larger nozzle for faster printing.
5. Rule out temperature and speed as contributors
Printing hotter than needed makes the melt thinner and more prone to oozing, which can look like over-extrusion even when the commanded flow is correct. Lower the temperature within the range recommended for the material and see whether blobbing improves. Very slow print speeds can have a similar effect by giving the nozzle more time to deposit material at any given point, so check whether the problem tracks with slow perimeters or infill rather than the whole print equally.
Over-extrusion checklist
- E-steps measured and corrected in firmware.
- Filament diameter measured with calipers and updated in the profile.
- Flow rate tuned per material with a single-wall test.
- Nozzle diameter matches the slicer profile.
- Temperature is at the low end of the material’s range.
If the extra material sits only at the base of the part, that’s elephant’s foot, not over-extrusion. The opposite problem, thin or missing lines, is covered in fixing under-extrusion, and the under-extrusion vs over-extrusion guide helps confirm which direction a print is actually going before you touch the flow rate. Bumps that cluster only at the seam or a retraction point are more likely blobs and zits than true over-extrusion.
