Wall thickness is one of those settings that sounds simple until you notice slicers don’t actually let you type in a millimeter value directly. Instead you set a number of walls, also called perimeters or loops, and the slicer multiplies that by your line width to get the final thickness, a value that’s tied closely to nozzle diameter as explained in our nozzle size guide. Get the wall count wrong and a part can look fine on screen and still crack under load or leak the water it was supposed to hold.
Wall count vs wall thickness in millimeters

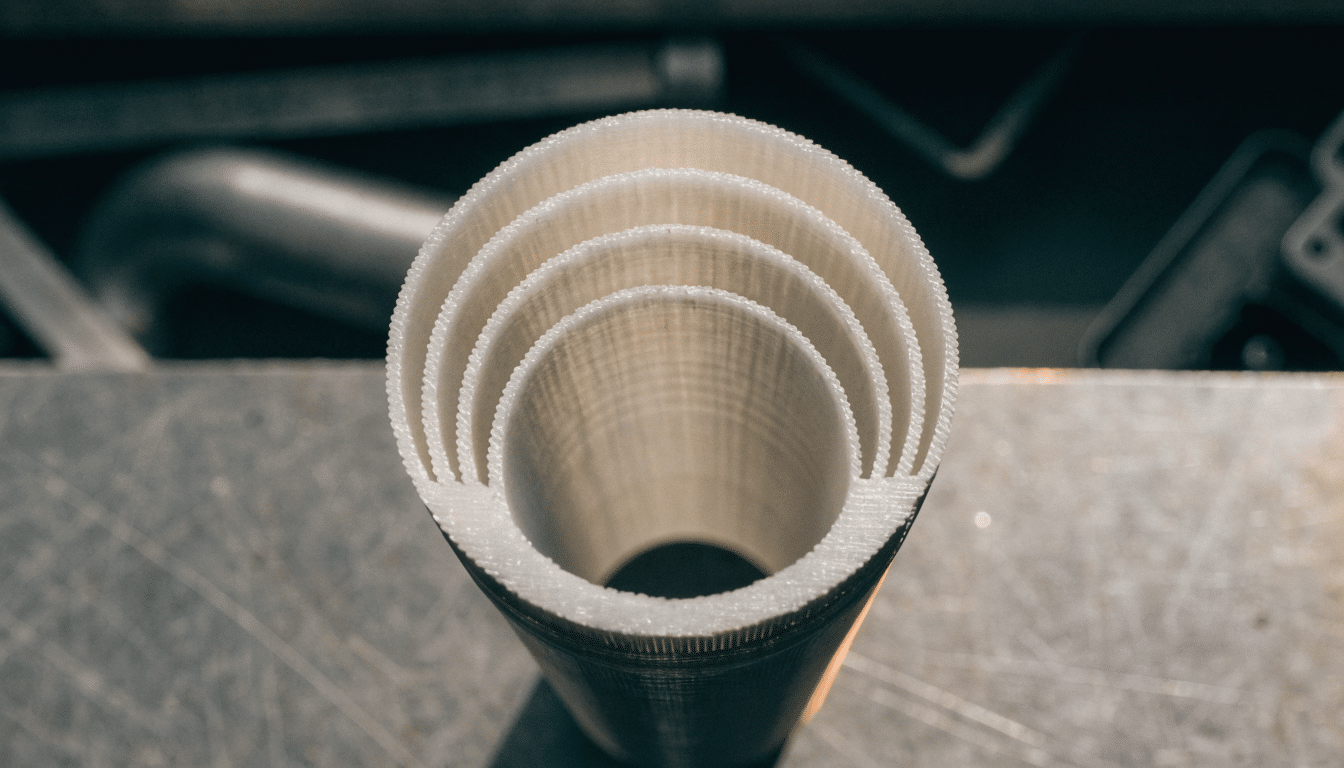

“Walls” and “perimeters” refer to the same thing: the closed loops of plastic that trace the outer shape of each layer, printed before or after the infill depending on your settings. Wall thickness in millimeters is roughly the number of these loops multiplied by line width, but it isn’t an exact multiplication. Prusa’s own documentation walks through why: two 0.45 mm perimeters printed at a 0.2 mm layer height don’t add up to 0.90 mm, they land closer to 0.86 mm, because the slicer overlaps adjoining loops slightly to bond them together rather than leaving them tangent. The overlap amount depends on both line width and layer height, so the same wall count can produce a slightly different thickness across different profiles.
How many walls for strength
PrusaSlicer’s default profiles ship with a minimum of two perimeters, but that floor is really meant for cosmetic prints rather than anything load bearing. Prusa’s knowledge base states it directly: the strength of a printed part comes mostly from the number of perimeters, not the infill percentage, which lines up with what OrcaSlicer’s documentation says about wall loops, that adding more of them improves layer adhesion, strength and rigidity at the cost of print time. If a part needs to survive drops, snap fits or actual mechanical load, three or four walls is a more realistic starting point than the two-wall default. Our guide to infill covers why cranking up infill density is usually the wrong lever to pull here. Walls do more of the structural work than most people expect.
Minimum thickness for watertight and functional parts
A wall thinner than about twice the nozzle diameter struggles to print cleanly at all, so 0.8 mm is a common floor when using a 0.4 mm nozzle, and design guides from several printer and design-for-manufacturing resources converge on that same number. Functional parts that need to survive handling, like brackets, hooks or fasteners, tend to do better in the 1.5 to 2 mm range. Containers meant to hold liquid are a special case. Because infill is deliberately full of gaps, a watertight result depends on unbroken, fully fused walls rather than fill density, and that’s why guidance on printing watertight parts consistently points toward adding more perimeters, often three to four or more, rather than raising infill percentage.
Line width is the other half of the equation
Because wall thickness in millimeters is a product of wall count and line width, you can reach the same thickness two different ways: more loops at a standard width, or fewer loops at a wider extrusion. CNC Kitchen tested exactly this trade-off with a set of load-bearing test hooks, comparing two walls at double width against four walls at standard width for the same total thickness. The wider, fewer-wall version came out ahead on strength and printed faster, since the slicer had fewer loops to trace per layer. That doesn’t mean thin walls with huge line widths are always the answer. Thin or highly curved parts still need enough loops to hold their shape, but it’s worth knowing wall count isn’t the only dial available.
Print time and material cost
Every extra wall loop adds a fixed amount of plastic and time per layer, multiplied by however many layers the part has, so the cost of going from two to four walls scales with part height, not just its footprint. That’s a smaller time penalty than dropping layer height, but it adds up on tall or large prints. Our PLA print settings guide covers this kind of speed and quality trade-off in more detail if you’re trying to balance a print queue against a deadline.
Checklist
- Wall thickness in millimeters is wall count times line width, minus a small overlap the slicer adds to bond adjacent loops.
- Two walls is a common default, but load bearing parts usually need three or four.
- Keep wall thickness above roughly twice the nozzle diameter (0.8 mm on a 0.4 mm nozzle) as a floor for anything that needs to hold its shape.
- Watertight containers need more unbroken walls, not more infill. Infill is designed to have gaps.
- Fewer walls at a wider line width can match or beat more walls at a standard width, and print faster while doing it.
- More walls cost time in proportion to part height, so match the wall count to what the part actually needs to survive.
